Dispenser Towel Machine - "V" or "Z" Inter-folding System - AM 272 / 273 / 275
|
Features:
* AC motor speed control.
* Roll speed synchronized with main motor.

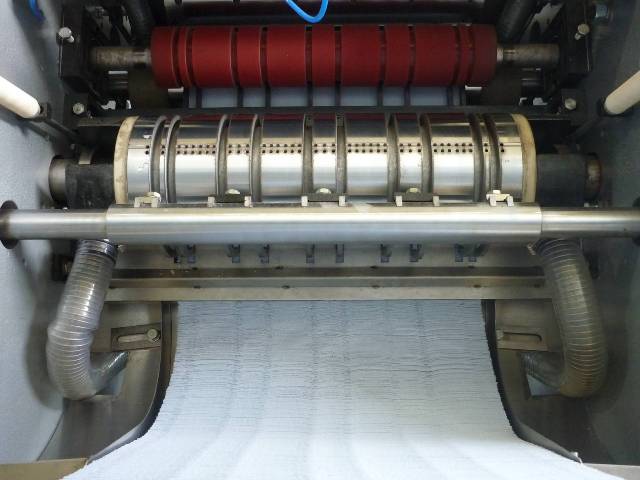

* "V" or "Z" Inter-folding system.

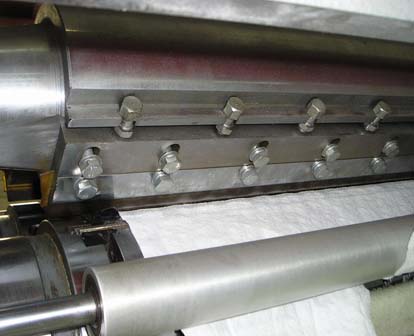

* Complete cut, without notches.
* Folding size, sheet length: 240 mm.
* Actual length depends on tissue elasticity.
* Converting web: 1 ply or 2 plies, towel paper.

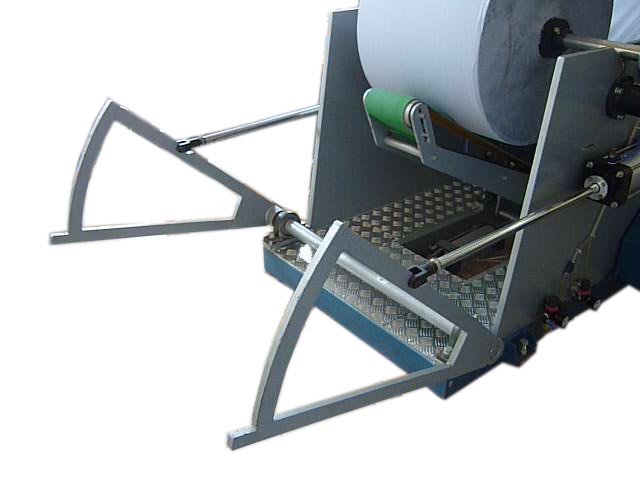

* Unwind stand - 1 jumbo roll.
* With driving flat belt for parent roll.

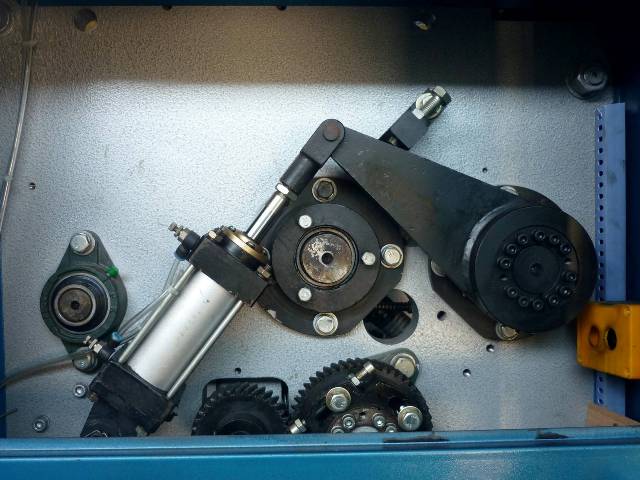

* Pneumatic jumbo roll lifting.
Optional:
* Embossing unit - Steel to steel or Steel to fiber, depending on design model.
* Lamination unit.
Technical Features:
* Main motor: 4 KW.

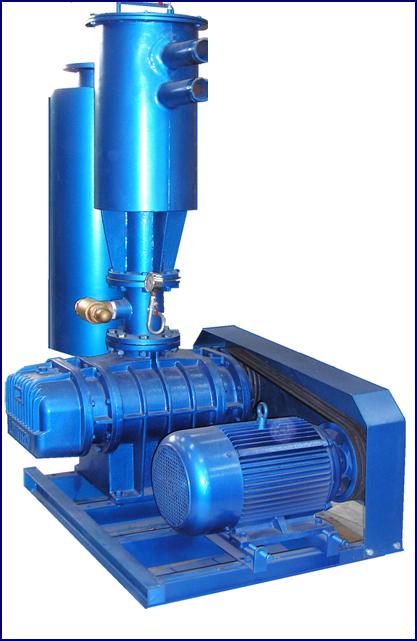

* Vacuum pump: 22 KW. or according to the machine width.
* Max usable paper width: 480 mm. for 2 lines & 1050 mm. for 4 lines &
1220 mm. for 5 lines.
* Production capacity: 400 - 500 sheets / min for each line.
* Automatic stop when tear off the paper by photocell.
* Electronic sheet counting.

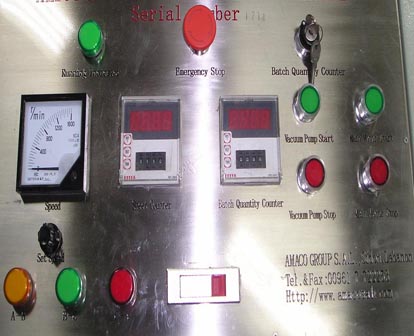

* Counter for batch quantity production.
* Movement transmission by tension rubber belts.

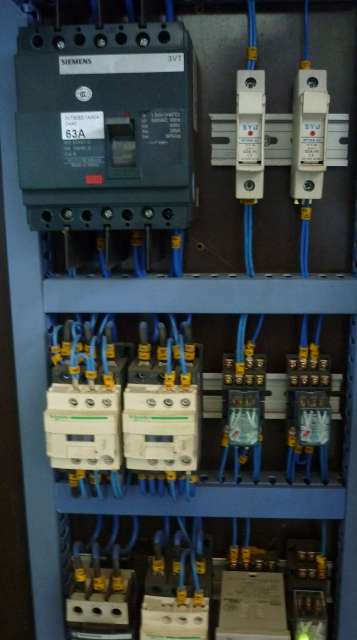

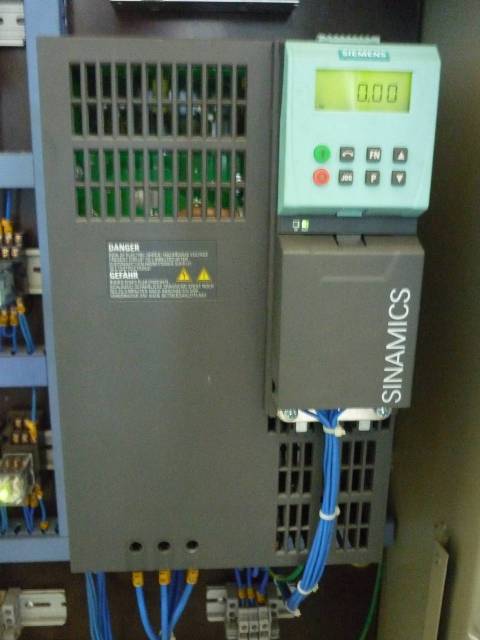

* All electric appliances and invertors of Siemens or international brand.
